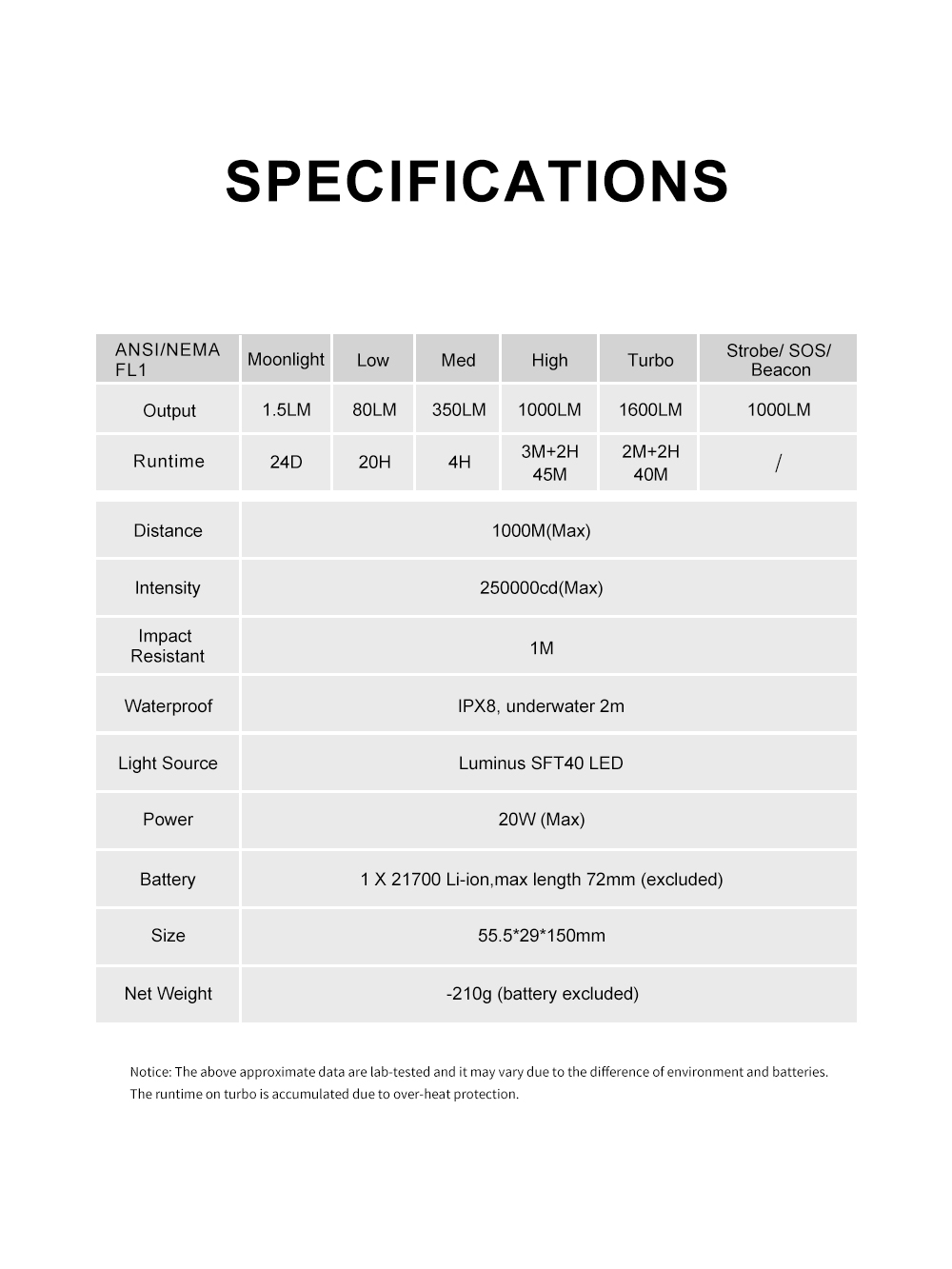

Specifications
| ANSI/NEMA FL1 |
Moonlight |
Low |
Med |
High |
Turbo |
Strobe/ SOS/Beacon |
| Output |
1.5LM |
80LM |
350LM |
1000LM |
1600LM |
1000LM |
| Runtime |
24D |
20H |
4H |
3M+2H 45M |
2M+2H 40M |
/ |
| Distance |
100M (Max) |
| Intensity |
250000cd (Max) |
| Impact Resistant |
1m |

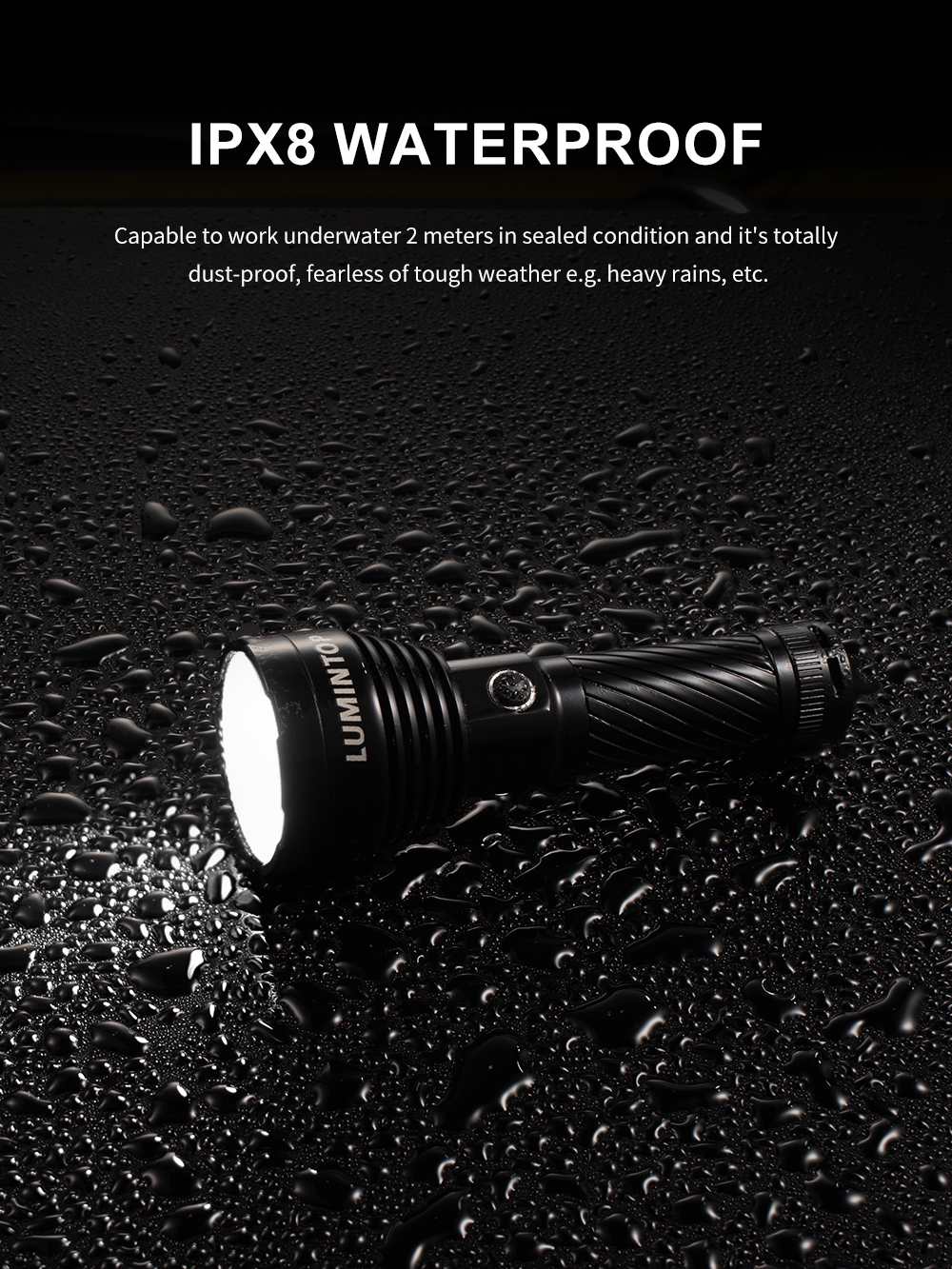

| Waterproof |
IPX8, underwater 2m |
| Light Source |
Luminus SFT40 LED |
| Power |
20W (Max) |
| Battery |
1 X 21700 Li-ion, max length 72mm (excluded) |

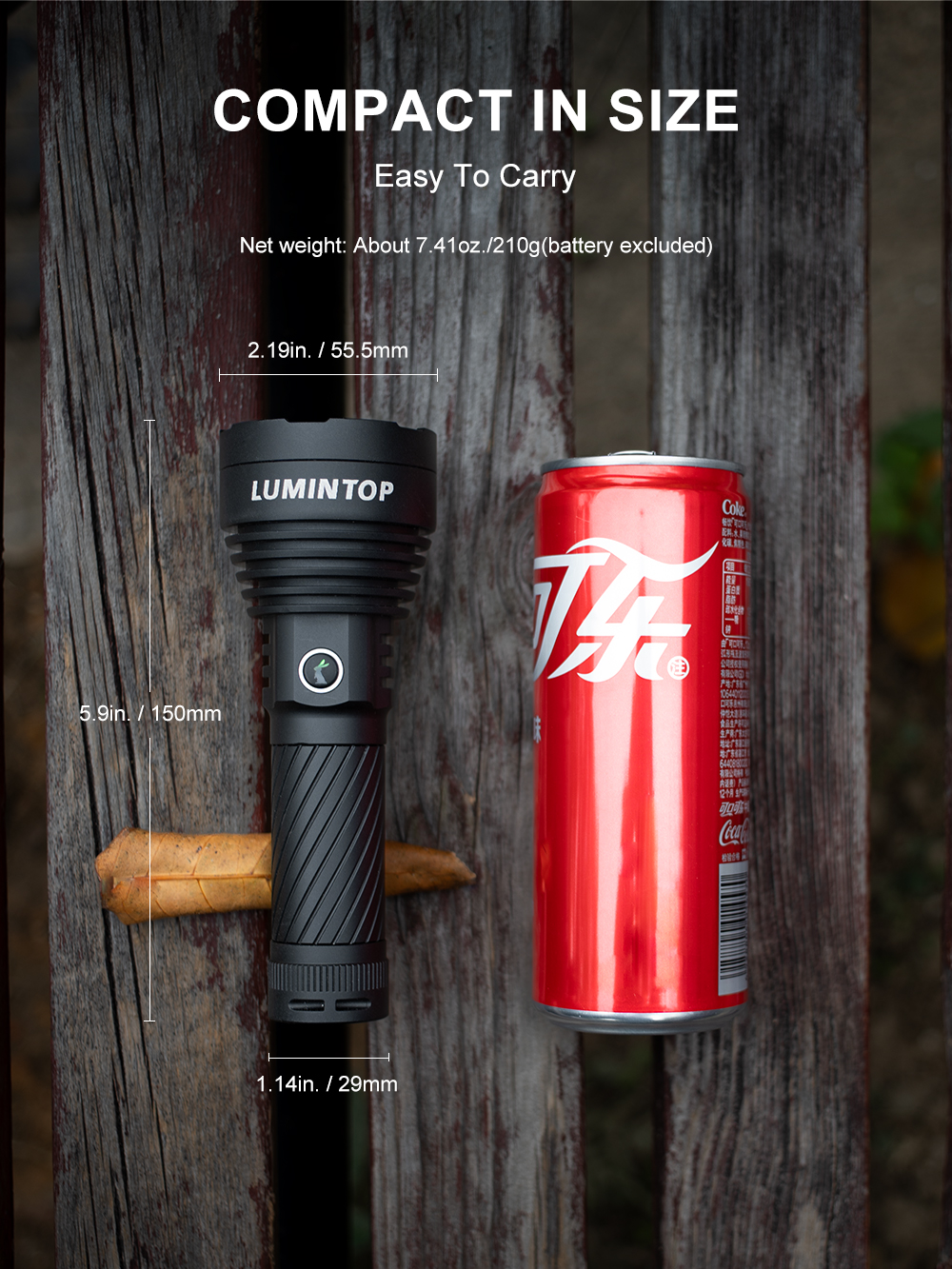

| Size |
55.5*29*150mm |
| Net Weight |
~210g (battery excluded) |
Notice: The above approximate data are lab-tested by using a 21700 Li-ion battery, it may vary due to the difference of environment and batteries. The runtime on turbo is accumulated due to over-heat protection.

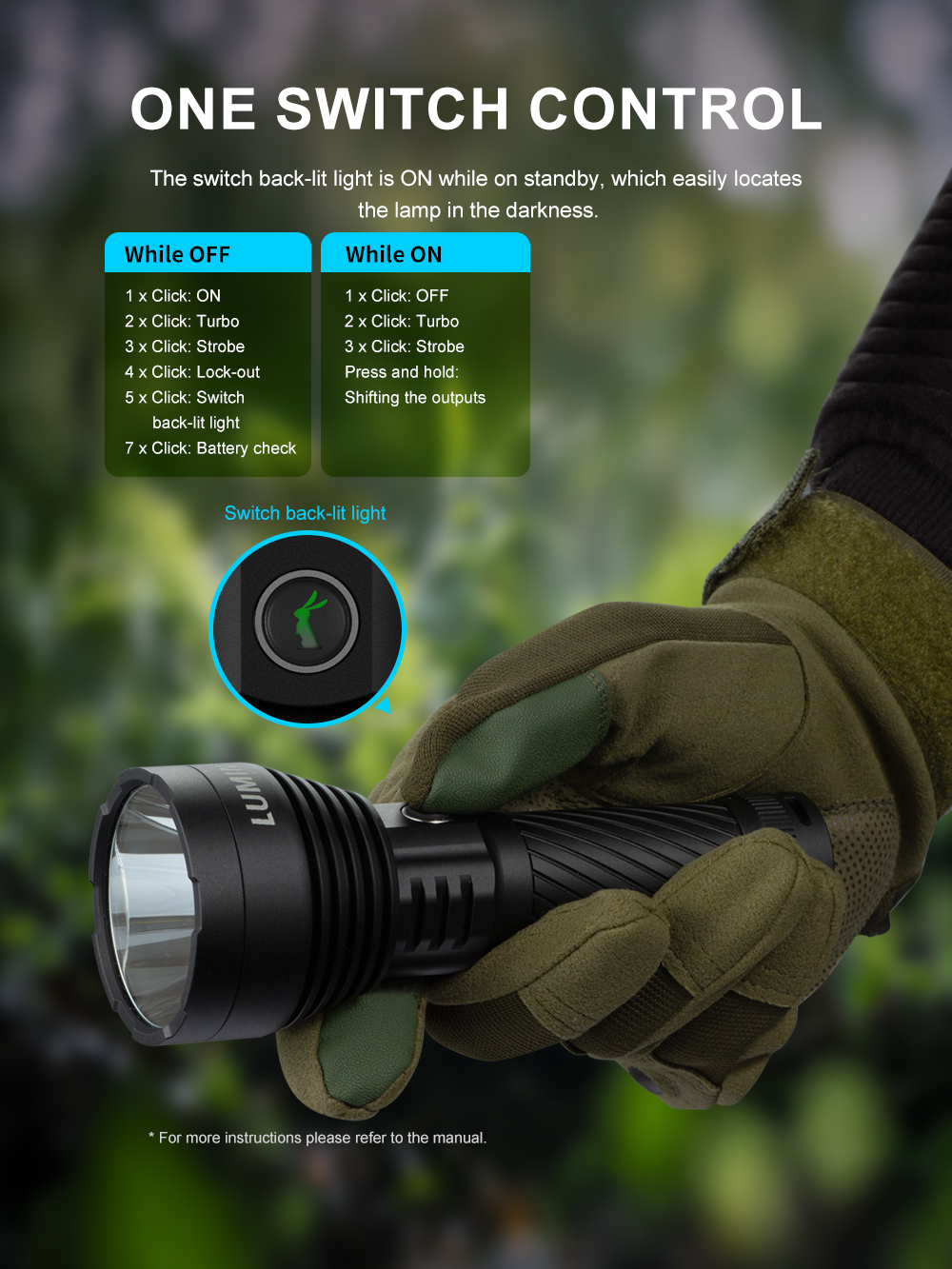

Operation Instruction

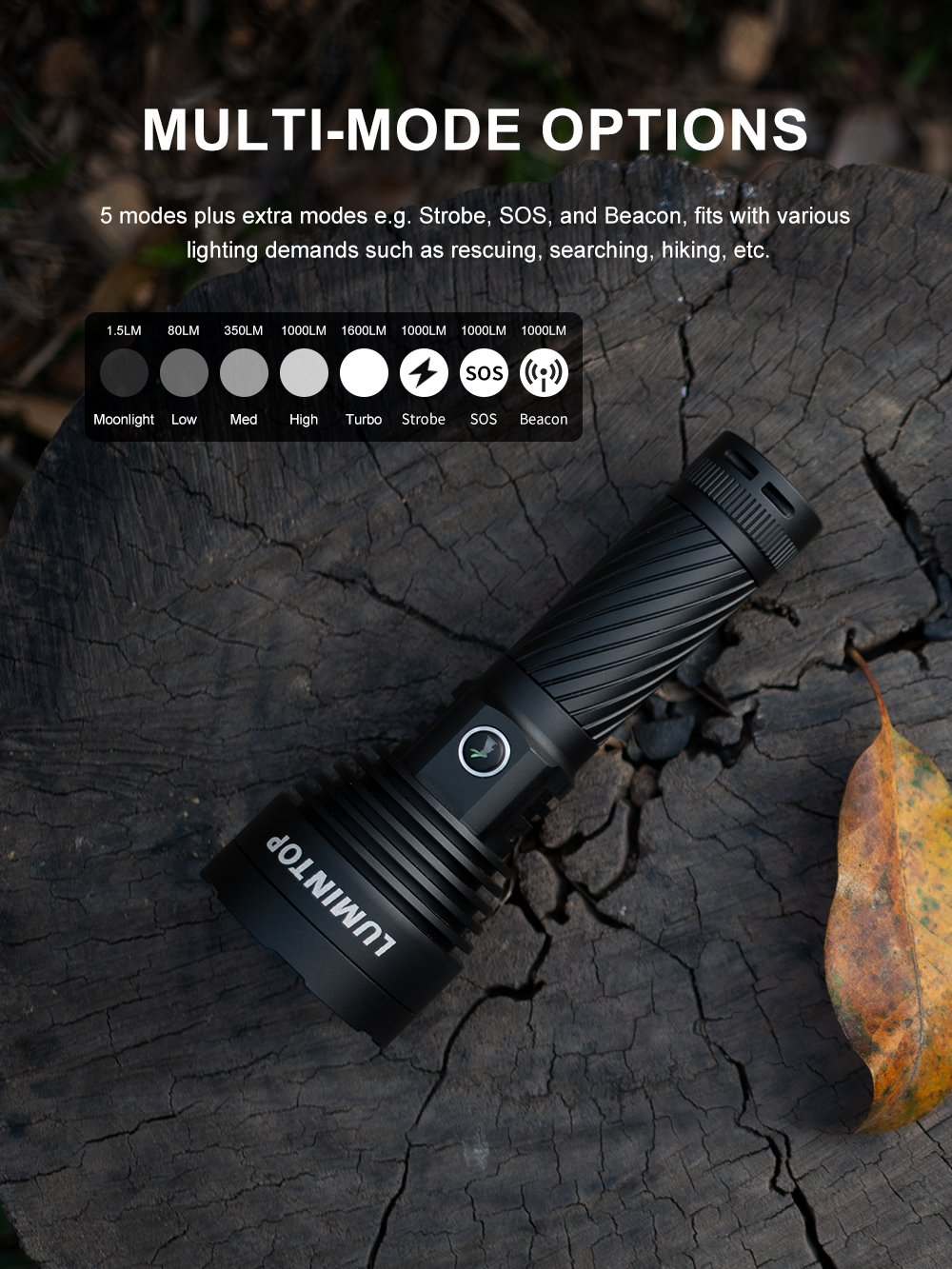

General mode: Low, Med, High (with mode memory function)
Hidden mode: Moonlight, Turbo, Strobe, SOS, Beacon
- ON/ OFF: One click of the switch
- Output change: From ON, press and hold the switch to ramp the outputs, and release the button to select the output.
- Turbo: 2 quick clicks of the switch.
- Strobe/SOS/Beacon: 3 clicks the switch to enter Strobe, and another 3 clicks to change the blinking modes (Strobe- SOS-Beacon).
- Moonlight: Press and hold the switch from OFF.

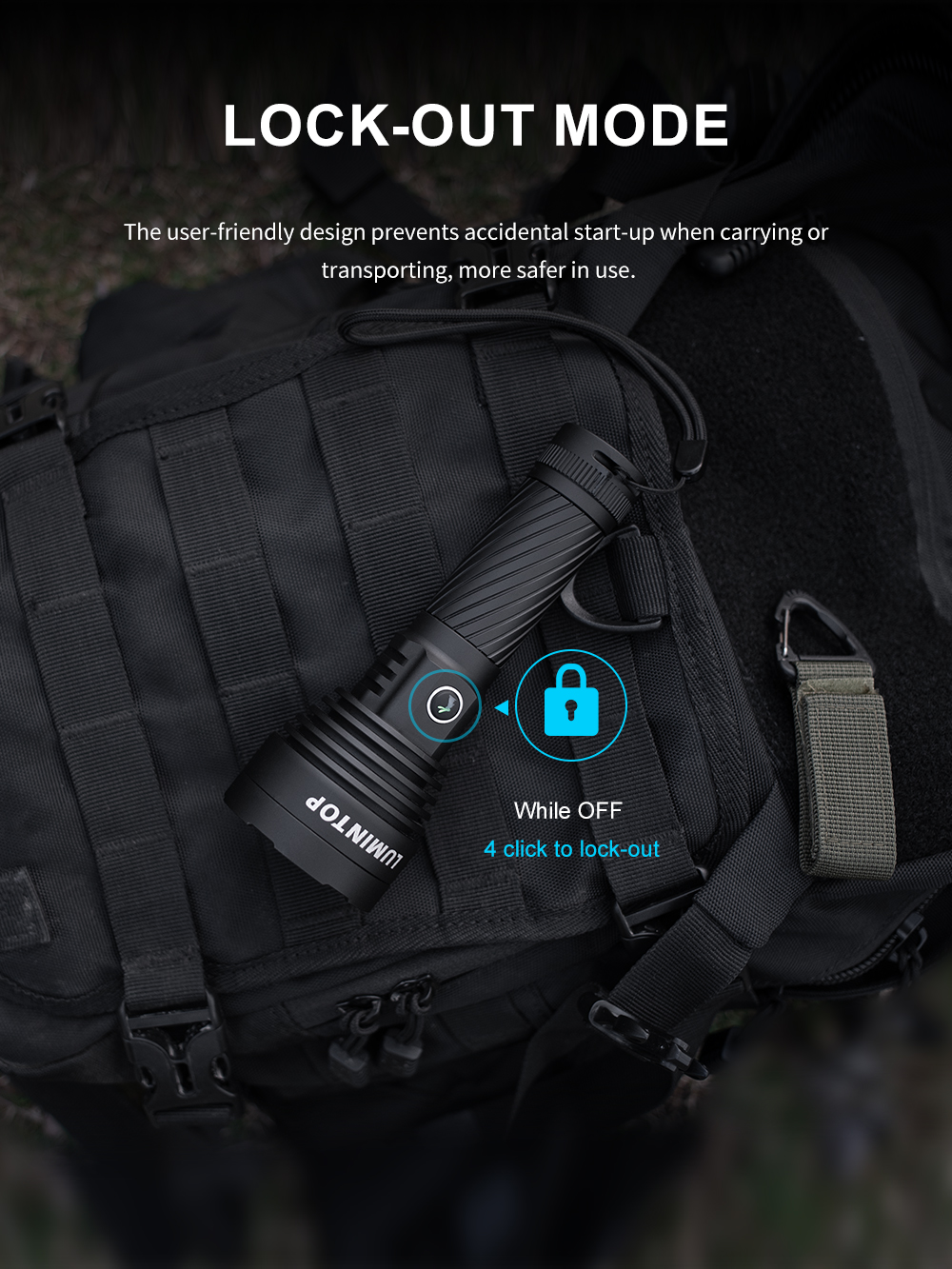

- Lock-out/ Unlock: 4 clicks the switch from OFF. Momentary Low is available when pressing the switch. Another 4 clicks or loosen the threads and cut off the electricity to unlock the flashlight.
- Switch back-lit light ON/ OFF: 5 clicks the switch from OFF
- Battery check: Continuously 7 clicks from OFF. E.g., 3.8V is indicated as the flashlight blinking 3 times, then another 8 blinks, etc.
